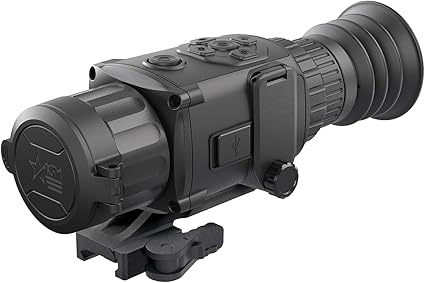

The AGM Rattler TS19-256 Thermal Imaging RifleScope is a compact and versatile thermal optic designed for hunters, pest control professionals, and tactical users who require reliable target detection in complete darkness or challenging weather conditions. Powered by a 12µm uncooled thermal sensor with 256×192 resolution, the scope detects heat signatures rather than relying on ambient light, allowing users to clearly identify targets through darkness, fog, smoke, or foliage.

Equipped with a 19mm germanium lens and 2.5× base magnification, the Rattler TS19-256 provides a wide field of view and effective target detection at extended distances. It can detect human-sized heat signatures at distances approaching 950–1250 yards, making it suitable for predator hunting, surveillance, and nighttime operations.

The scope also features built-in video recording, Wi-Fi connectivity, and 8× digital zoom, enabling users to capture and share footage directly from the device. Its lightweight and compact design allows it to function not only as a riflescope but also as a handheld thermal monocular when detached from the rifle.

Specifications

• Sensor Resolution: 256 × 192 thermal detector

• Pixel Pitch: 12 µm uncooled sensor

• Refresh Rate: 25 Hz

• Lens System: 19 mm germanium lens (F/1.0)

• Base Magnification: 2.5×

• Digital Zoom: 1×, 2×, 4×, 8× (up to 20× digital magnification)

• Detection Range: Up to approx. 950–1250 yards (human-sized target)

• Field of View: 9.3° × 6.9°

• Display: 0.39-inch OLED, 1024 × 768 resolution

• Eye Relief: 45 mm

• Video Recording: Yes

• Photo Capture: Yes

• Storage: Built-in 16 GB EMMC memory

• Wi-Fi: Yes (AGM Connect app compatible)

• Color Palettes: White Hot, Black Hot, Red Hot, Fusion

• Battery Type: 2 × CR123A lithium batteries

• Battery Life: Up to 4.5 hours continuous operation

• External Power: USB-C connection supported

• Operating Temperature: Approx. −20°C to 50°C

• Protection: Waterproof and shockproof

• Dimensions: Approx. 7.4 × 2.5 × 3.1 inches

• Weight: Approx. 18.4 oz (about 520 g)

Features

High-Sensitivity Thermal Sensor
12µm thermal detector captures heat signatures with excellent clarity even in total darkness.

19 mm Germanium Lens
Provides a balanced combination of magnification and field of view for close- to mid-range detection.

Wide Detection Range
Detects heat signatures at distances approaching 1,000+ yards for effective night hunting and surveillance.

Multiple Digital Zoom Levels
Up to 8× digital zoom helps users identify targets at longer distances.

Picture-in-Picture (PIP) Mode
Enhances precision by displaying a magnified aiming area while maintaining a wide field of view.

Video Recording & Image Capture
Integrated recording allows hunters to save and share hunting experiences.

Wi-Fi Connectivity
Connect to the AGM mobile app for live streaming, file transfer, and device control.

One-Shot Digital Zeroing
Simplifies the zeroing process for fast and accurate rifle setup.

Compact and Lightweight Design
Small footprint makes it suitable for multiple rifle platforms or handheld thermal observation.

Weather-Resistant Construction
Waterproof and shockproof housing ensures reliable performance in harsh environments.
