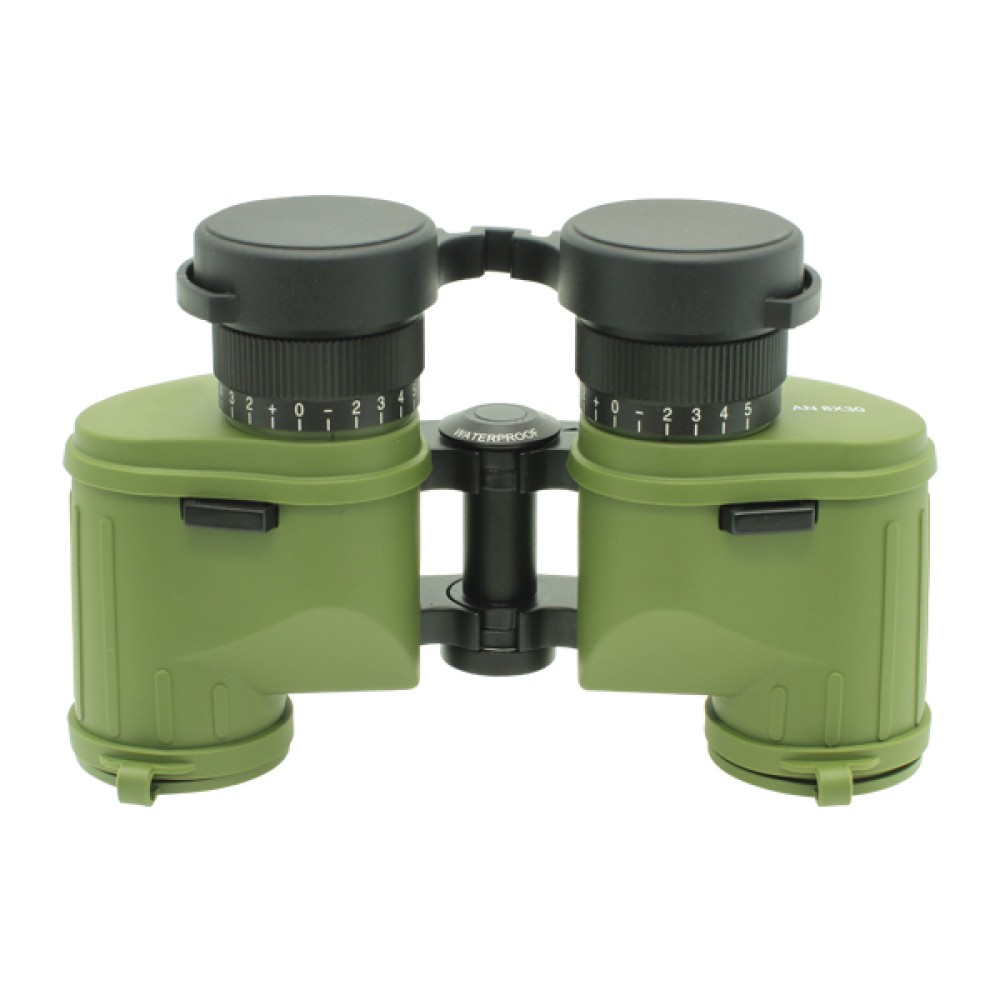

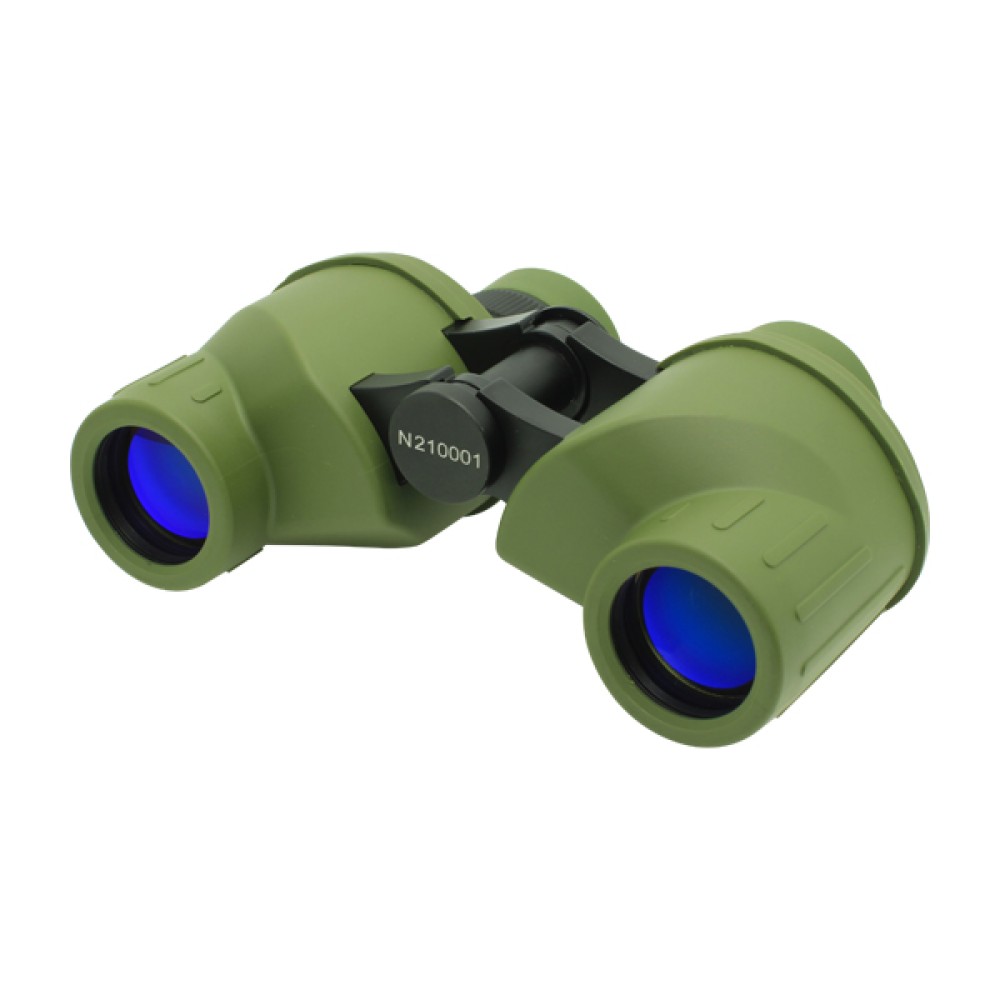

Newcon Optik AN 8x30M22 Tactical Binocular
SPECIFICATION :
Magnification (x) | 8 |
Objective lens diameter (mm) | 30 |
Exit pupil (mm) | 3.8 |
Eye relief (mm) | 18.2 |
Field of view – Angular (°) | 8.1 |
Field of view @ 1,000m (metres) | 142 |
Minimum Focus Distance (m) | 3.7 |
Light Transmission (no reticle) | ≥85 % |
Light Transmission (with reticle) | ≥75 % |
Resolution (Center) | ≤60“ |
Lens | FMC Coating and hardened |
Prism Coating | FMC |
Mechanical Characteristic | |
Closed Interpupilary Distance (mm) | 56 |
Open Interpupilary Distance (mm) | 74 |
Positive Ocular Diopter Adjustment | +5 |
Negative Ocular Diopter Adjustment | -5 |
Focus Type | Individual Eyepiece Focus |
Alignment | |
Convergence | <60’ |
Divergence | ≤30’ |
Elevation | ±15‘ |
Environmental Characteristic | |
Housing rating | IP67 |
Waterproof | MIL-STD-810 |
Thermal shock | MIL-STD-810 |
Mechanical shock | MIL-STD-810 |
| Vibration | MIL-STD-810 |
| High Temperature (Operational) | +55°C |
| Low Temperature (Operational) | -30°C |
| Shock proof | Drops on to plywood from 1.0 m height |
Dimensional | |
| LxWxH (Binocular Only) | 106 x 165 x 58 mm |
| Weight (Binocular Only) | 550g |
Special Features | |
Laser protection 40dB at 1064nm | + |
Body color | Military Green |
Nitrogen Filled to prevent fogging | + |
Reticle | Custom |
Newcon Optik AN 8x30M22 Tactical Binocular
- Product Code: EB050334
