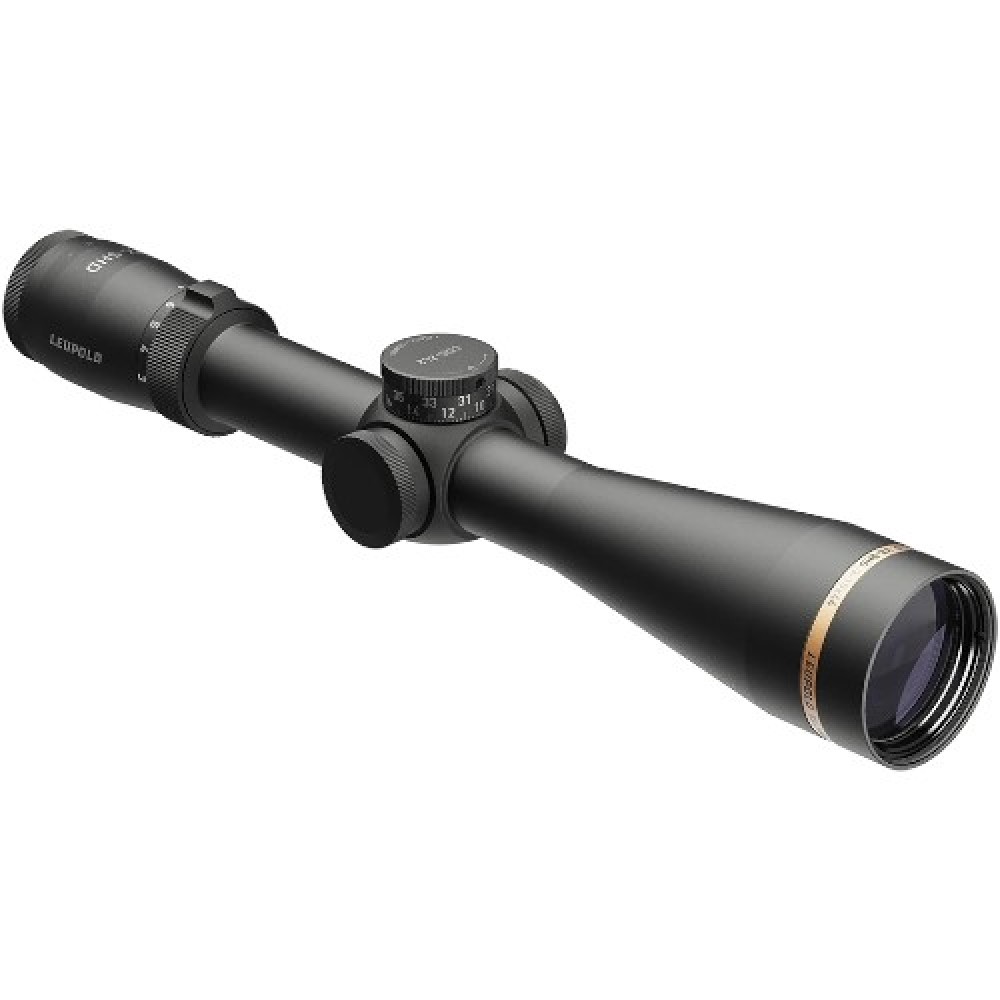

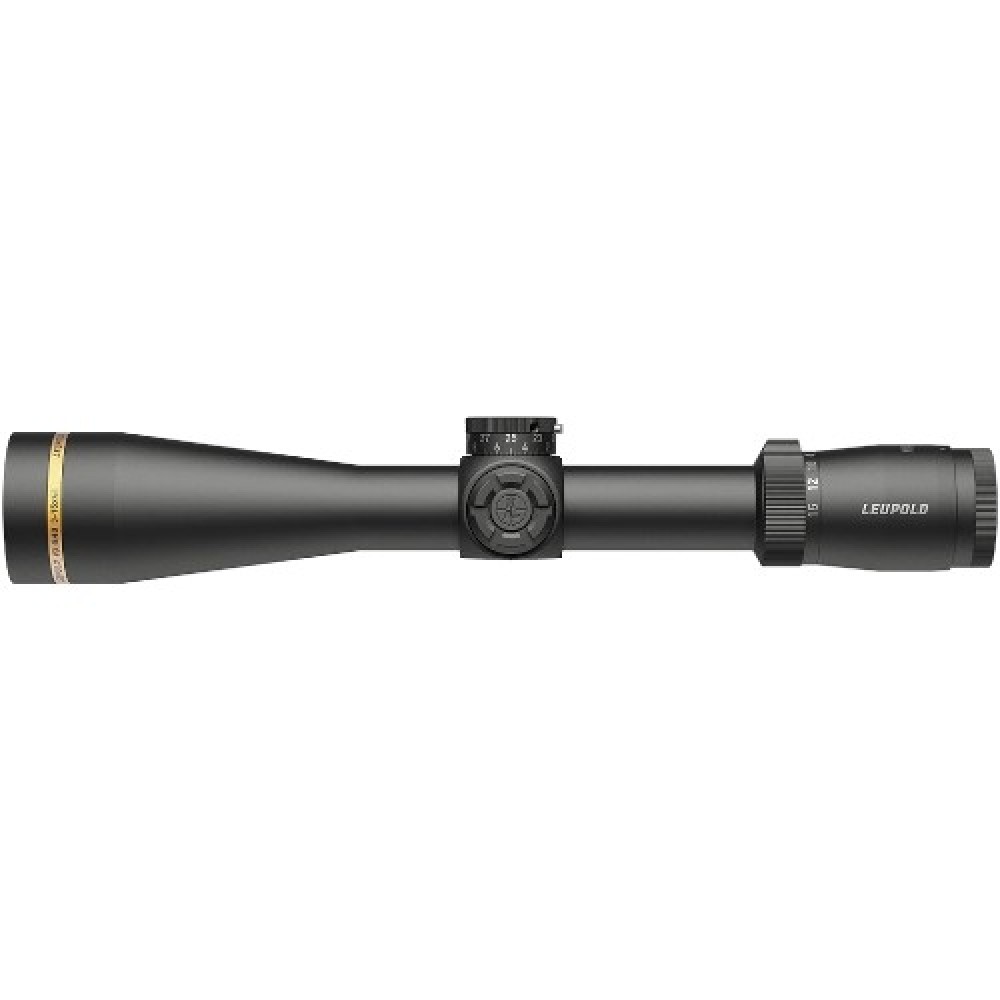

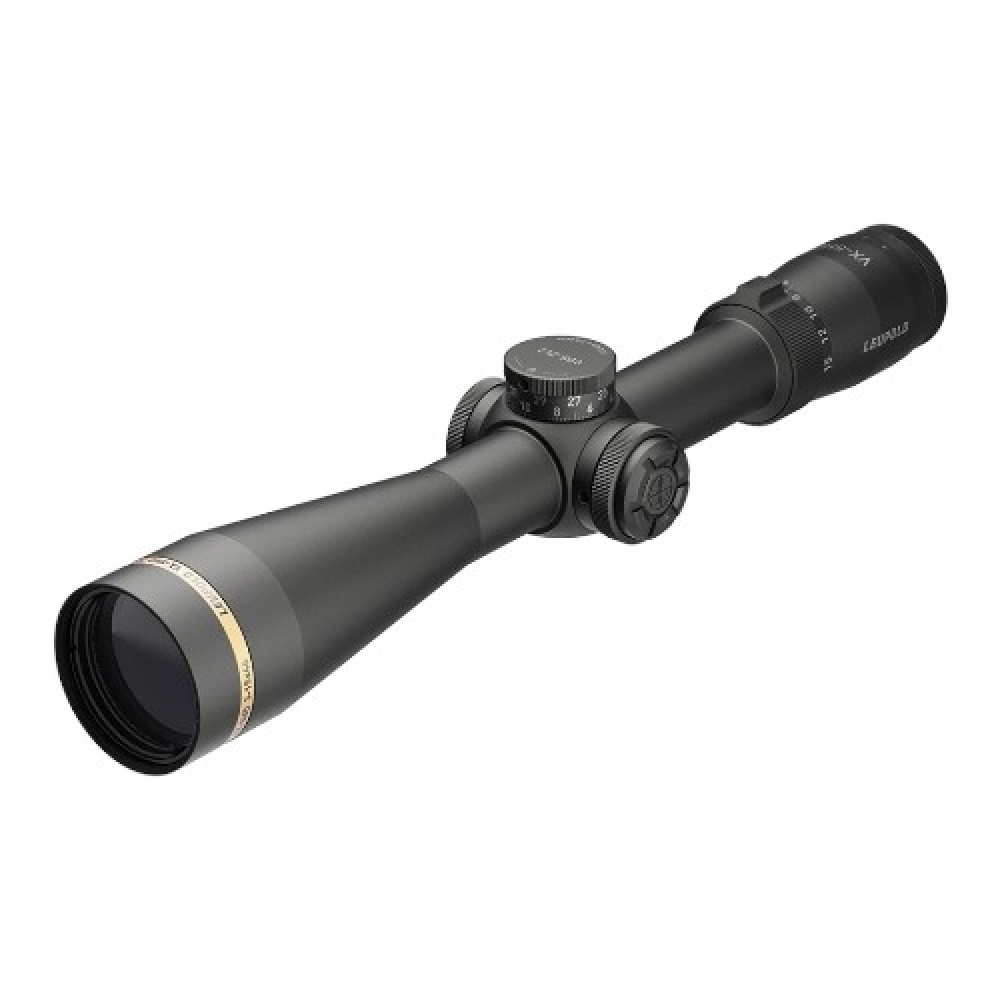

LEUPOLD VX-5HD 3-15X44MM CDS-ZL2 SIDE FOCUS ILLUM. FIREDOT DUPLEX SCOPE 172368
The VX®-5HD 3-15x44mm is made for anything and everything. Its 3-15x magnification range lets you take full advantage of any situation. Turn the power down to 3x for thick timber hunting, crank it up to 15x for your trek across the open plains, or go anywhere in-between. This scope has the versatility to dominate them all. Plus, it comes with our proprietary Firedot® illumination to give you a bright, intuitive aiming point that won't get lost in low-light conditions.

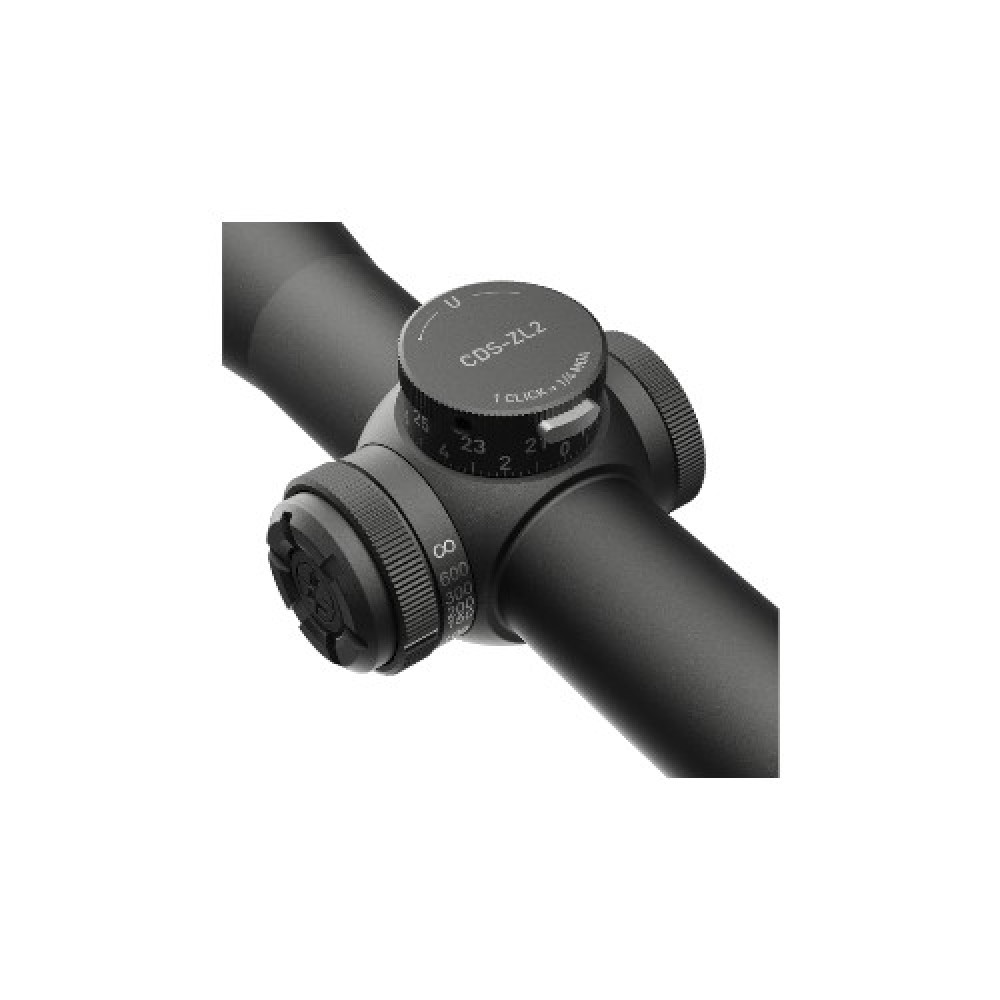

The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
Specifications
Adjustable Parallax | Side Focus |
Battery Type | CR2032 |
BDC Dial Included | No |
Custom Dial System
(CDS) | Yes |
Custom BDC Dial
Compatible | Yes |
Daylight Bright
Illumination | Yes |
Elevation Adjustment
Type | CDS-ZL2 |
Electronic Reticle
Level | No |
Light Management
System | Professional-Grade
Optical System |
Locking Dial | Yes |
Magnification Type | Variable |
Nightvision Compatible
Illumination | No |
Reticle Focal Plane | Second Focal Plane |
Revolution Indicator | Yes |
Reticle | Illum. FireDot Duplex |
Rezero Type | Set Screw |
Reticle Type | Illuminated |
Adjustable Objective | No |
Switch Type | Push Button |
Windage Adjustment
Type | Pop-Up Rezero |
Weight (oz) | 19.7 |
Elevation Adjustment
Value per Click | 1/4MOA |
Elevation Adjustment
Range (MOA) | 75 |
Elevation Adjustment
Range (MIL) | 22 |
Elevation Adjustment
Range (cm @ 100m) | 218 |
Elevation Adjustment
Per Revolution | 20 MOA |
Elevation Dial Travel
Limit | 38MOA |
Windage Adjustment
Value per Click | 1/4MOA |
Windage Adjustment
Range (MOA) | 75 |
Windage Adjustment
Range (MIL) | 22 |
Windage Adjustment
Range (cm @ 100m) | 218 |
Windage Adjustment Per
Revolution | 20 MOA |
Magnification Max | 15 |
Magnification Min | 3 |
Objective Lens
Diameter (mm) | 44 |
Linear FOV Low Mag
(ft@100yds) | 38.3 |
Linear FOV High Mag
(ft@100yds) | 7.7 |
Angular FOV Low Mag
(Degrees) | 7.3 |
Angular FOV High Mag
(Degrees) | 1.5 |
Eye Relief Low Mag
(in) | 3.7 |
Eye Relief High Mag
(in) | 3.8 |
Minimum Parallax-Free
Distance (yd) | 50 |
Battery Life (hr), Low
Intensity | 1600 |
Battery Life (hr),
Medium Intensity | 1000 |
Battery Life (hr),
High Intensity | 300 |
Number of Illum
Settings | 8 |
Leupold VX-5HD 3-15x44mm CDS-ZL2 Side Focus Illum. FireDot Duplex Scope 172368
- Product Code: LP478931
LEUPOLD VX-5HD 3-15X44MM CDS-ZL2 SIDE FOCUS ILLUM. FIREDOT DUPLEX SCOPE 172368
The VX®-5HD 3-15x44mm is made for anything and everything. Its 3-15x magnification range lets you take full advantage of any situation. Turn the power down to 3x for thick timber hunting, crank it up to 15x for your trek across the open plains, or go anywhere in-between. This scope has the versatility to dominate them all. Plus, it comes with our proprietary Firedot® illumination to give you a bright, intuitive aiming point that won't get lost in low-light conditions.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Features
Specifications
Adjustable Parallax | Side Focus |
Battery Type | CR2032 |
BDC Dial Included | No |
Custom Dial System
(CDS) | Yes |
Custom BDC Dial
Compatible | Yes |
Daylight Bright
Illumination | Yes |
Elevation Adjustment
Type | CDS-ZL2 |
Electronic Reticle
Level | No |
Light Management
System | Professional-Grade
Optical System |
Locking Dial | Yes |
Magnification Type | Variable |
Nightvision Compatible
Illumination | No |
Reticle Focal Plane | Second Focal Plane |
Revolution Indicator | Yes |
Reticle | Illum. FireDot Duplex |
Rezero Type | Set Screw |
Reticle Type | Illuminated |
Adjustable Objective | No |
Switch Type | Push Button |
Windage Adjustment
Type | Pop-Up Rezero |
Weight (oz) | 19.7 |
Elevation Adjustment
Value per Click | 1/4MOA |
Elevation Adjustment
Range (MOA) | 75 |
Elevation Adjustment
Range (MIL) | 22 |
Elevation Adjustment
Range (cm @ 100m) | 218 |
Elevation Adjustment
Per Revolution | 20 MOA |
Elevation Dial Travel
Limit | 38MOA |
Windage Adjustment
Value per Click | 1/4MOA |
Windage Adjustment
Range (MOA) | 75 |
Windage Adjustment
Range (MIL) | 22 |
Windage Adjustment
Range (cm @ 100m) | 218 |
Windage Adjustment Per
Revolution | 20 MOA |
Magnification Max | 15 |
Magnification Min | 3 |
Objective Lens
Diameter (mm) | 44 |
Linear FOV Low Mag
(ft@100yds) | 38.3 |
Linear FOV High Mag
(ft@100yds) | 7.7 |
Angular FOV Low Mag
(Degrees) | 7.3 |
Angular FOV High Mag
(Degrees) | 1.5 |
Eye Relief Low Mag
(in) | 3.7 |
Eye Relief High Mag
(in) | 3.8 |
Minimum Parallax-Free
Distance (yd) | 50 |
Battery Life (hr), Low
Intensity | 1600 |
Battery Life (hr),
Medium Intensity | 1000 |
Battery Life (hr),
High Intensity | 300 |
Number of Illum
Settings | 8 |
- Brand: Leupold
- Availability: In Stock
$650.00
