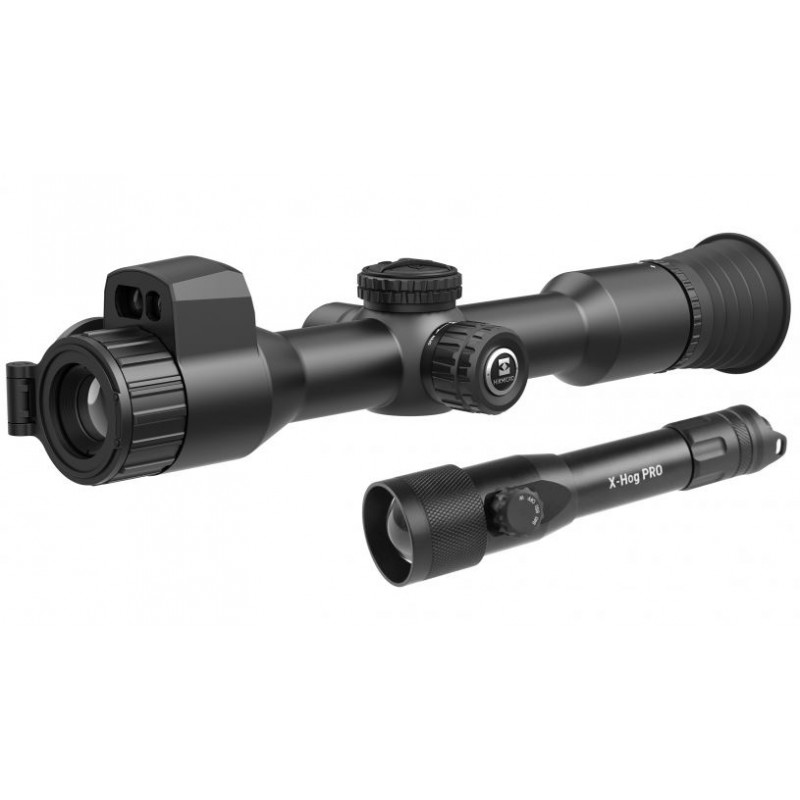

The combination of the HIKMICRO ALPEX 4K Lite LRF night vision scope and the X-hog Pro 850/940 nm laser illuminator creates a highly versatile and powerful observation system for daytime and nighttime hunting. Below is a detailed description of each component and how they work together.

HIKMICRO ALPEX 4K Lite LRF (Model A40EL)

The HIKMICRO ALPEX 4K Lite is a compact, ultra-lightweight digital day and night vision scope, specifically engineered for agility and airgun use . Its defining characteristic is the integration of a Laser Rangefinder (LRF) and a Ballistic Calculator (BC) in the A40EL model, setting it apart as a sophisticated sighting solution .

• Optics and Image Quality: At its core, the scope features a high-performance 4K UHD CMOS sensor (3840x2160) paired with a fast 40mm F1.0 lens . This combination delivers exceptionally detailed and crisp full-color images during the day and in low-light conditions like dawn and dusk . The image is displayed on a high-resolution 1920x1080 OLED screen. For nighttime use, it switches to a clear monochrome mode . A key feature is the selectable frame rate of 50 or 100 fps, allowing users to prioritize either maximum image clarity for static observation or a smoother, blur-free image for tracking fast-moving targets .

• Integrated Laser Rangefinder and Ballistic Calculator (LRF+BC): The "LRF" designation signifies a major advancement . The built-in laser rangefinder provides precise distance measurements from 3 to 1000 meters with an accuracy of ±1 meter . This data is then used by the internal ballistic calculator to provide an real-time aiming point, automatically adjusting for factors like pellet type (.177, .22, .25) and shooting angle . This feature eliminates guesswork and ensures high precision at various ranges.

• Design and Usability: Weighing less than 500g and built with a 30mm magnesium alloy tube, it is 60% lighter and 25% slimmer than many standard optics, making it easy to mount on air rifles and carry for extended periods . It boasts an IP67 rating, making it dust-tight and waterproof for use in harsh weather . User-centric features include a 1-second startup, intuitive top-turret controls, up to 7 hours of runtime from its dual-battery system (internal + one 18650), and onboard video/photo recording to 32GB of internal memory . It also connects to the HIKMICRO Sight app for sharing data and hunting grounds .
