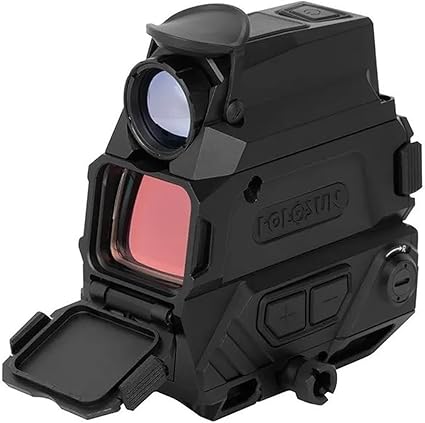

The Holosun DRS-TH Thermal Fusion Reflex Sight is an innovative optic that combines a traditional red-dot reflex sight with integrated thermal imaging technology. This fusion design allows users to rapidly acquire targets using a red-dot reticle while simultaneously detecting heat signatures through the thermal overlay, making it highly effective for hunting, tactical operations, and low-visibility environments.

Powered by a 256 × 192 thermal sensor and a high-resolution OLED display, the DRS-TH provides clear thermal imagery with smooth performance thanks to a 50 Hz refresh rate. The sight offers several thermal palettes such as white hot, black hot, highlight, outline, and fusion, enabling users to optimize visibility depending on the environment.

The optic also incorporates Holosun’s Multi-Reticle System (MRS) featuring a 2 MOA dot, 65 MOA circle, or circle-dot combination, allowing shooters to adapt their aiming style. With built-in video recording, digital zoom, and rugged waterproof construction, the DRS-TH provides advanced functionality in a compact reflex-style sight designed for modern rifles.

Specifications

• Thermal Sensor Resolution: 256 × 192 pixels

• Thermal Pixel Pitch: 12 µm

• Display: OLED display, 1024 × 768 resolution

• Refresh Rate: 50 Hz

• Optical Magnification: 1×

• Digital Zoom: 1×, 3×, 5× (up to 8× digital magnification depending on mode)

• Reticle System: Multi-Reticle System (MRS) – 2 MOA Dot, 65 MOA Circle, Circle-Dot

• Reticle Color: Red LED / Digital thermal reticle options

• Thermal Palettes: White Hot, Black Hot, Highlight, Outline, Fusion

• Video Recording: Yes

• Photo Capture: Yes

• Internal Storage: Up to 32 GB onboard memory

• Brightness Levels: 8 daylight + 4 night-vision compatible settings

• Battery Type: 2 × 18350 rechargeable batteries

• Battery Life: Up to approx. 10–20 hours depending on mode

• Housing Material: CNC-machined 7075-T6 aluminum

• Waterproof Rating: IP67

• Mounting System: Picatinny / Weaver rail

• Dimensions: Approx. 3.7 × 2.2 × 3.5 inches (94 × 56 × 89 mm)

• Weight: Approx. 18.5 oz (≈509 g)

Features

Thermal & Red Dot Fusion Technology
Combines a reflex red-dot sight with a thermal sensor overlay for enhanced target detection in low-visibility conditions.

256×192 Thermal Imaging Sensor
Detects heat signatures effectively in darkness, smoke, fog, and other challenging environments.

Multi-Reticle System (MRS)
Choose between 2 MOA dot, 65 MOA circle, or circle-dot reticle for versatile aiming and faster target acquisition.

High-Resolution OLED Display
1024 × 768 OLED display with a 50 Hz refresh rate provides smooth thermal image rendering.

Digital Zoom Capability
Multiple zoom levels allow users to magnify thermal images for improved target identification.

Built-in Video & Photo Recording
Capture images and record footage directly from the optic using onboard memory.

Multiple Thermal Color Palettes
White Hot, Black Hot, Highlight, Outline, and Fusion modes improve visibility in various environments.

Rugged Military-Grade Construction
Built from 7075-T6 aluminum with IP67 waterproof protection for reliable operation in harsh field conditions.

Long Battery Runtime
Powered by two 18350 rechargeable batteries providing extended operating time during field use.
